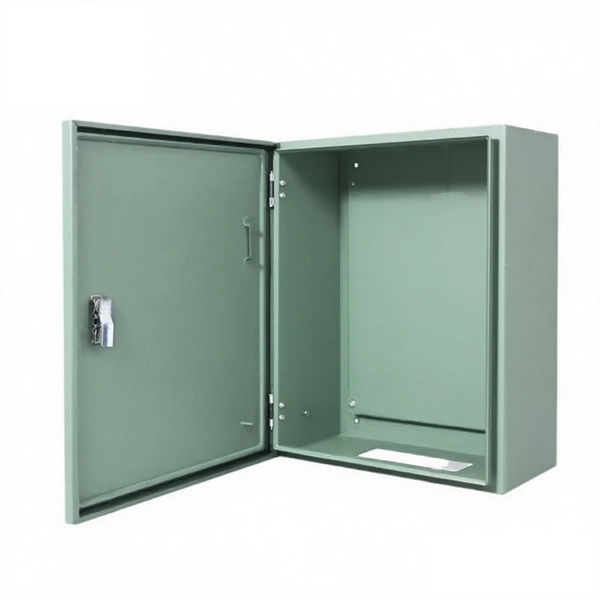

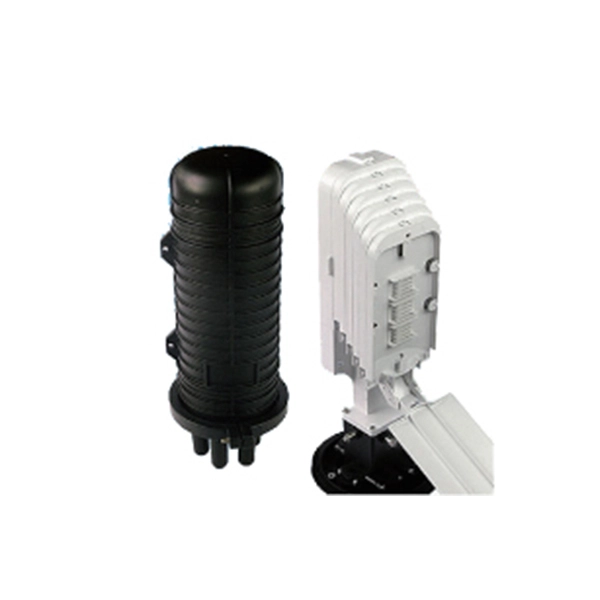

The vertical installation of the distribution box

Proper installation of a vertical distribution box ensures safety, accessibility, and reliable power distribution.Site Selection and PlacementChoose a dry, accessible location away from water, flammable, or corrosive substances, ideally near the main power supply for easy connection and maintenance . The recommended installation height is typically 1.5 meters from the floor to the bottom edge, but it can be adjusted for operational convenience, ensuring consistency across multiple boxes in the same area . Ensure good ventilation and avoid direct exposure to sunlight or rain unless the box has appropriate IP/NEMA ratings for outdoor use .Mounting and AlignmentThe box must be level and stable. For boxes under 50 cm in height, the vertical deviation should not exceed 1.5 mm; for taller boxes, up to 3 mm is acceptable . Accurately cut entry and exit holes for cables, using locknuts and insulating bushings to prevent exposed wires and ensure firm connections .Wiring and ConnectionsSeparate busbars for neutral (N) and protective earth (PE) lines, with clear labeling and numbering .Internal wiring should be neat, horizontal or vertical, with smooth bends and a minimum bending radius of six times the wire diameter .Secure connections using spring washers and tight terminals to prevent loosening, overheating, or electric shock .Follow standard wire color codes for three-phase systems: Phase A - Yellow, Phase B - Green, Phase C - Red, Neutral - Light Blue, Protective Earth - Yellow/Green bi-color .Protection DevicesInstall circuit breakers, fuses, and surge protectors for each circuit, ensuring correct ratings to prevent overloads or short circuits . Include Residual-Current Devices (RCDs) or RCBOs if required for additional safety .Compliance and TestingFollow local electrical codes (NEC, IEC, or regional standards) and use certified components (UL/CE). Before powering on, perform visual inspections and multimeter tests to verify proper connections and insulation . Record installation details for future maintenance and inspections.Maintenance and LabelingLabel all circuits clearly and consider modular designs for easier upgrades. Schedule regular inspections to ensure long-term reliability and safety . By following these steps, a vertical distribution box can be installed safely, efficiently, and in compliance with electrical standards, ensuring reliable power distribution and ease of maintenance.
