Wiring sequence for a four-core fiber optic terminal box

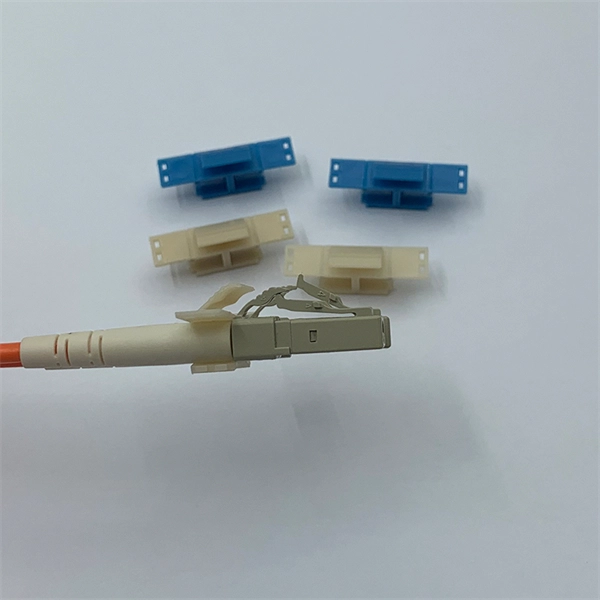

A four-core fiber optic terminal box connects each fiber core to a corresponding pigtail and adapter port, ensuring organized routing, proper slack management, and minimal signal loss.OverviewA four-core fiber optic terminal box is designed to terminate and manage up to four individual fiber cores from an incoming optical cable. Each core is typically fused to a pigtail, which is then connected to an adapter port (SC or LC) for user-facing connections . The box provides secure routing, protection, and organized storage for fibers, ensuring proper bend radius and preventing damage.Wiring SequencePrepare the Incoming CableStrip the outer jacket of the fiber optic cable carefully.Separate the four individual fiber cores and clean them with fiber cleaning wipes.Splice Each Fiber to a PigtailUse a fusion splicer to connect each fiber core to a pre-connectorized pigtail.Ensure the splice is secure and properly protected in the splice tray.Route Fibers Inside the Terminal BoxPlace the spliced fibers into the splice tray or designated routing channels.Maintain a minimum bend radius (usually 30–40 mm) to prevent signal loss.Organize fibers in a dual-layer or circular routing pattern if the box supports it .Connect Pigtails to Adapter PortsInsert each pigtail connector into the corresponding SC/LC adapter port.Typically, the wiring sequence follows the order of the fiber cores in the cable (Core 1 → Port 1, Core 2 → Port 2, etc.), but labeling is recommended for clarity and future maintenance .Manage Slack and Secure FibersCoil any excess fiber in the storage area of the box.Use clips or holders to prevent movement and maintain organized routing.Labeling and TestingLabel each port according to the fiber core or end-user connection.Perform insertion loss and return loss tests to ensure proper signal transmission .Additional TipsFor splitter-ready boxes, ensure the PLC splitter is installed before connecting pigtails.Avoid tight bends or stacking splices directly on top of each other to reduce stress on fibers.Use the dual-layer design of the box to separate incoming and outgoing fibers for easier maintenance . By following this sequence, a four-core fiber optic terminal box can be installed efficiently, providing reliable connectivity for FTTH or small-scale fiber networks.
