How to wire a full power distribution box

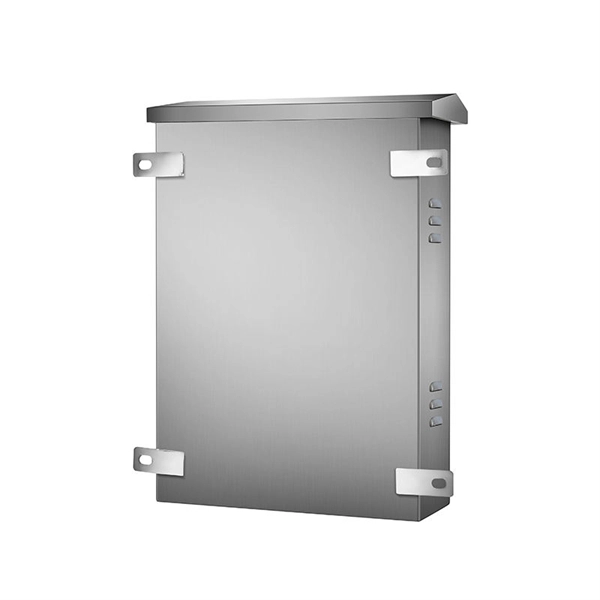

Wiring a power distribution box involves connecting the main power supply to the main breaker, installing circuit breakers, and safely wiring outgoing circuits while following strict safety protocols.Preparation and SafetyBefore starting, turn off the main power supply to prevent electrical shock . Ensure you have the right tools, including screwdrivers, wire strippers, a multimeter, and insulated gloves . Choose a distribution box suitable for your load requirements and environment, considering indoor/outdoor placement, IP/NEMA ratings, and durability . Install the box at an accessible height, typically around 1.5 meters, in a dry, ventilated area .Components of a Distribution BoxA typical distribution box contains:Main breaker (Double Pole MCB): Controls the incoming power .Circuit breakers (Single or Double Pole MCBs): Protect individual circuits .RCCB (Residual Current Circuit Breaker): Provides additional protection against leakage currents .Busbars, neutral and ground bars: Distribute power to circuits and provide grounding .DIN rails and terminal blocks: For mounting devices and organizing wiring .Wiring StepsSecure the Box: Mount the distribution box firmly to the wall, ensuring it is level and unobstructed .Connect the Main Power: Attach the incoming live (brown/red) and neutral (blue/black) wires to the main breaker terminals .Install Circuit Breakers: Place each breaker in its designated slot on the DIN rail or panel .Wire Outgoing Circuits: Connect each circuit wire to its corresponding breaker, ensuring proper labeling for safety .Connect Neutral and Ground: Attach neutral wires to the neutral busbar and ground wires to the grounding bar .Check Connections: Use a multimeter to verify all connections are secure, with no short circuits or loose wires .Testing and Final ChecksAfter wiring, perform a visual inspection to ensure neat cable management and proper insulation . Test each circuit with a multimeter to confirm correct voltage and continuity before turning on the main power . Avoid overloading circuits and ensure all breakers are rated appropriately for their respective loads .Tips and Best PracticesAlways follow local electrical codes (NEC, IEC, or regional standards) for compliance and safety .Use UL/CE-certified components to ensure reliability .Maintain a wiring diagram for future troubleshooting or modifications .Schedule regular inspections to ensure long-term safety and performance . By following these steps, you can safely wire a power distribution box, ensuring efficient and protected electricity distribution throughout your building.
